• Chip-break Slot Grinding Machine SGS-1
  • Chip-break Slot Grinding Machine SGS-1
  • Chip-break Slot Grinding Machine SGS-1
  • Chip-break Slot Grinding Machine SGS-1
  • Feature & Layout Drawing
  • Specification
Chip-break Slot Grinding Machine SGS-1 Layout Drawing
Mechanism
  • All cast-iron components are made from DUCTILE IRON (FCD-45), wear resisting to assure precission.
Spindle
  • Using high precision pneumatic motor spindle which can recach up to 30000 rpm to stablize the circumferential speed of grinding wheel . The CBN wheel would be wear away rapidly if spindle speed could not match up.

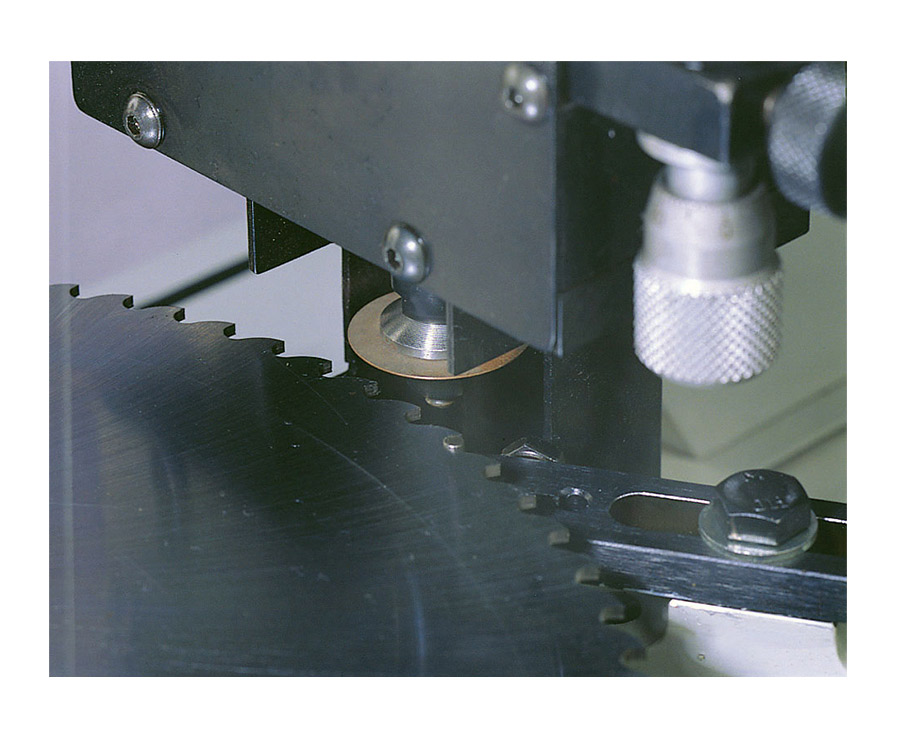

Grinding Wheel
  • CBN Cubic Boron Nitride wheel wears away every slight while grinding, it decreases the cost and gets highly efficiency.
Saw Blade
  • Apply to grind either HSS circular saw or Tungsten Carbide Tipped saw
Setup
  • Alternately teeth grind from tooth by tooth setup just need few second with the accurate micro-graduation knob.
Automation
  • One revolution completed grinding automatically by input the teeth number into the counter.
Laborsaving
  • The machine shuts down automatically after grinding that saves manpower and electricity
Instruction / Model. SGS-1
Saw blade diameter Ø70 ~ Ø450 mm
CNB wheel diameter Ø15 ~ Ø30 mm
Wheel inner diameter Ø6 mm
Pitch range Max. 25 mm
Thickness of saw blade Max. 8 mm
Feeding speed 45 teeth/minute
Wheel spindle speed 30000 rpm
Spindle operating pressure 5 kg/cm2
Air consumption 300 l/min
Driving motor 0.19 kw 6p
Coolant pump motor 0.09 kw 2p
Total electric power 0.375 kw
Net weight 140 kgs
Gross weight 190 kgs
Machine size (W x H x D) 750 x 1270 x 850 mm
Packing size (W x H x D) 800 x 1410 x 900 mm
* The specifications subject to change without prior notice.
